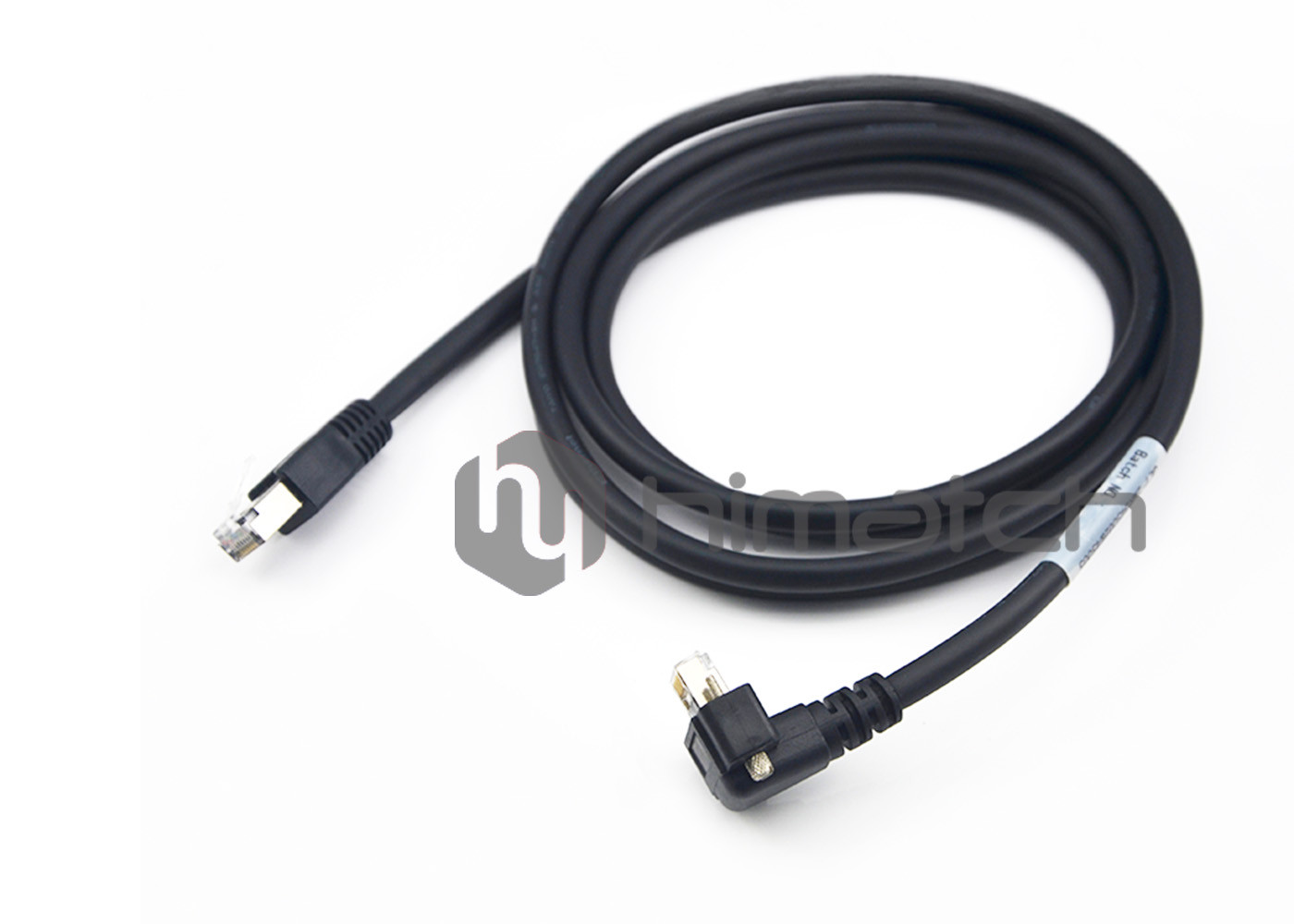

GigE Vision Ethernet Cable With Screws Camera Side For Vision Inspection System
Description:
GigE cable for data transmission with RJ-45 plug with vertical locking screws on the camera side at a length of 5 meter.The twisted, shielded cable has an RJ-45 click-lock plug on the host side and is suitable for drag chain applications.
Himatch’s GiGE camera link cables are built of plenum rated Cat5, CAT5e, CAT6, CAT 6a standard or high flexible robotic double shielding cable with AMP or Hirose RJ45 connector, robust molding with or without thumbscrew locking , They offer outstanding quality, durability, and good performance for Gige camera.
Specification:
| Brand | Himatch | Model No. | See Code | Conductor: | Tinned copper |
| Cable: | CAT5e 4P | Wire: | 26AWG | Insulation: | HDPE/FEP |
| Jacket: | PVC/PUR | Cable OD: | 5.6mm | Color: | Black/Yellow |
| Cable shape | Round | Using for | CCD Camera | UL Verified: | Yes |
| Voltage: | 80V | Bending: | 15 Millions | OEM/ODM: | Available |
Features:
100% electronically tested for functionality
Low noise and good performance in skew
Shielded pairs provide superior signal integrity
PUR jacket resists oil and other contaminants
Operating temp: -25~90 ℃
RoHS and CE compliant
Application:
Industrial Ethernet
Process industry applications
Cable used for following but not only CCD camera:Basler ace,Basler aviator,Basler runner,Basler racer...
Basler Time-of-Flight series'model: ACA2500-14GC,ACA640-90GC,ACA1300-60GC,RAL2048-48GM
JAI,AVT’s Guppy Pro, Manta, Stingray, Pike series, Dalsa,Imagingsource and so on, all the Industrial CCD camera with RJ45 connector
