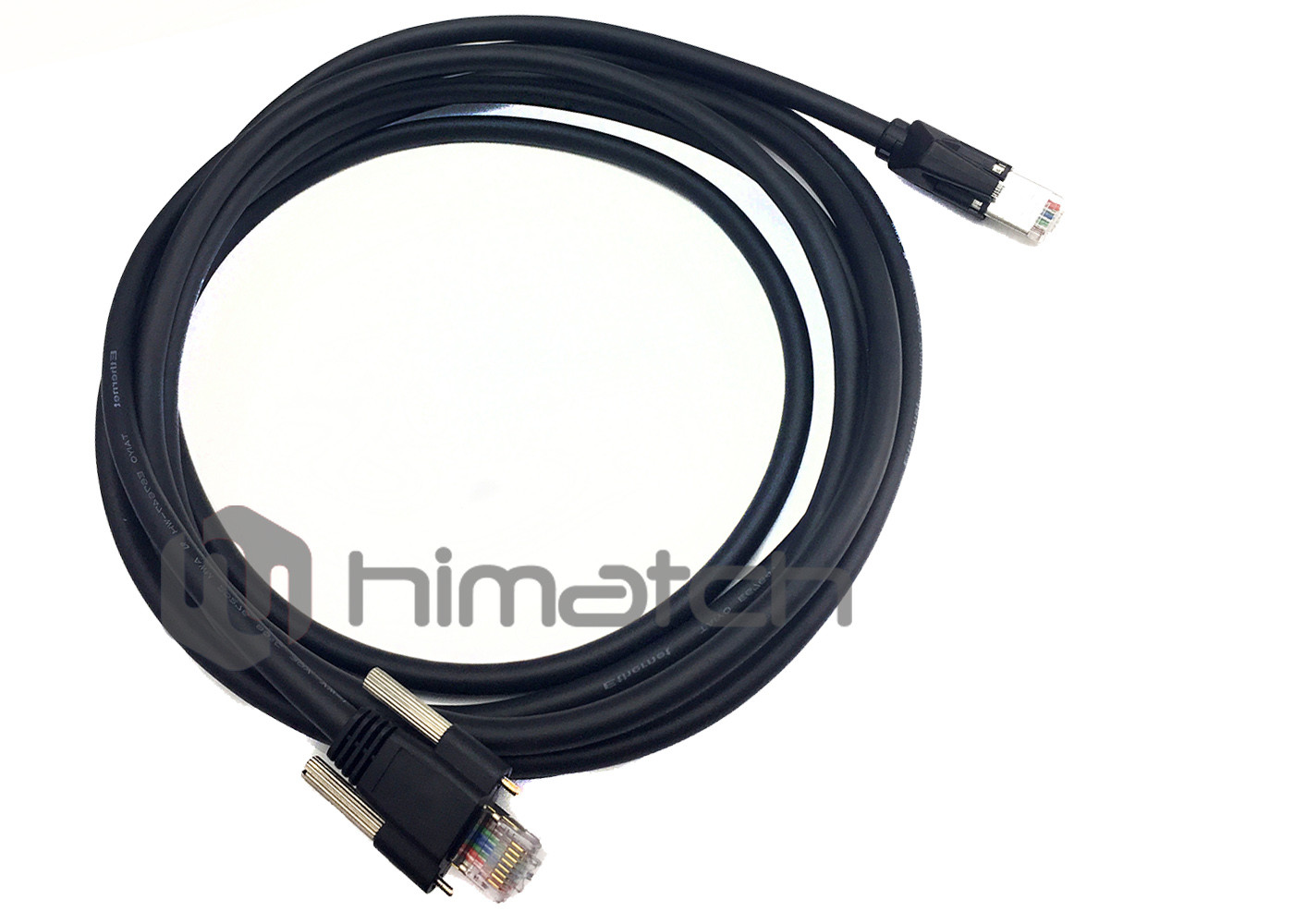

High Flexible Gigabit Ethernet Cable Black Color For Industrial Camera 5m
Description:
Based on Ethernet technology, it is expected that the market will expand rapidly in the future with the visualization and standardization of the machines for industrial technology and industrial robots.
GigGE Camera cable series are constructed of plenum rated CAT5e, CAT6, CAT 6a stranded flexible double shielding cable with AMP or Hirose RJ45 connector, and M12 A Code, B code,D code, X code, robust molding, variety combination of different connectors, They offer outstanding quality, durability, and high performance for industrial FA site.
Specification:
| Brand | Himatch | Model No. | see Code | Conductor: | Tinned copper |
| Cable: | CAT5e 4P | Wire: | 26AWG | Insulation: | HDPE/FEP |
| Jacket: | PVC/PUR | Cable OD: | 6.0mm | Color: | Black/Yellow |
| Cable shape | Round | Using for | GiGE Camera | UL Verified: | Yes |
| Voltage: | 80V | Bending: | 1 Millions | OEM/ODM: | Available |
Features
Machine Vision Cable series
High performance of transmission, High Flexible moving and durable
High quality image transmission
100% electronically tested for functionality
RJ45 shielded connector
Double shielded braid + foil design protect EMI/RFI
RoHS and REACH compliant
Application

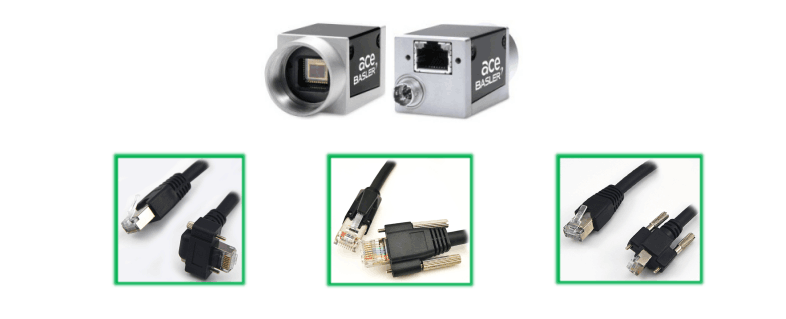

Cable used for following but not only CCD camera:
Basler ace,Basler aviator,Basler runner,Basler racer,Basler Time-of-Flight series’ model: ACA2500-14GC,ACA640-90GC,ACA1300-60GC,RAL2048-48GM
JAI,AVT’s Guppy Pro, Manta, Stingray, Pike series, Dalsa,Imagingsource and so on, all the Industrial CCD camera with RJ45 connector
Towed Cable wiring
In order to keep the good bending performance of the robot cable, improve the cable’s life time, and let the data transmission more stable, and prevent the accidental occurrence of the broken wire, it is very important obey the towing points
Bending radius.
The bending radius of the towed cable should be as big as possible. Recommended that the cable should be set ≥ 8D (D is the outer diameter of the cable)
Tow chain installation.
In the placement of towed cables, cables need to be tiled, cables can not be crossed or overlapped;
Select the tow chain with enough space to ensure that the cable occupies less than 30% space;
Install as many partitions as possible to avoid interference between cables.
