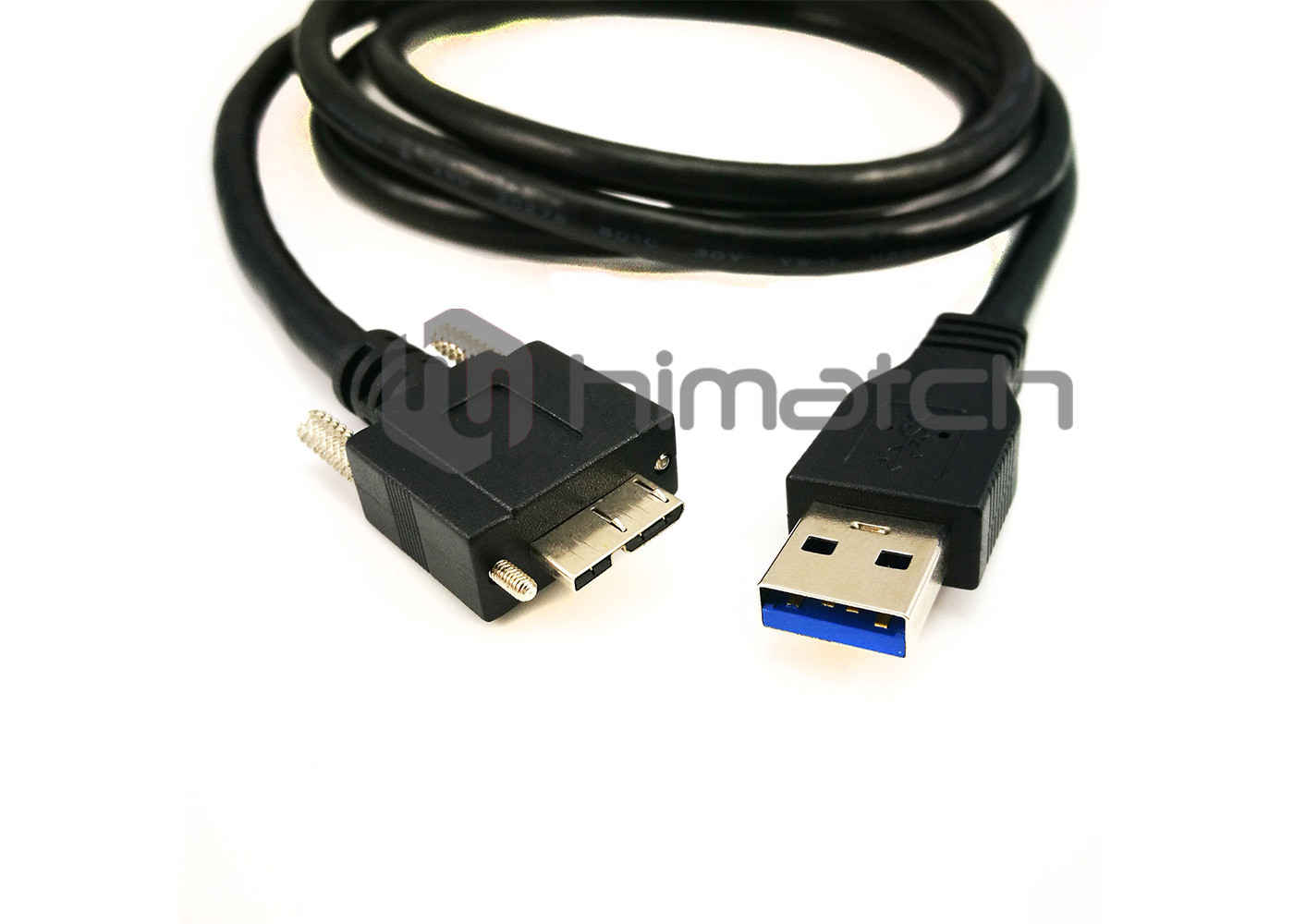

USB 3.0 To Micro B For Industrial Camera , Micro B with Locking Screw , 5 Meters
Description:
Himatch’s USB3.0 vision camera link cables are built of plenum rated USB 3.0 shielding cable with USB 3.0 A plug and Micro B plug, Angle right/ Angle left, ….. straight type , robust molding with thumbscrew locking , They offer outstanding quality, high performance for industrial USB3 camera. USB 3.0 cables are up to 10 times faster than USB 2.0 - 4.8 Gbps versus 480 Mbps. The increased bandwidth substantially reduces the time required for transferring large amounts of data or video.
Customized Cable Length: 0.2 - 10m
Specification:
| Standard | USB 3.0 Vision | Transmit Speed Max | 5Gpbs |
| Installation mode | Static | Install radius (Min) | 25mm |
| Wire gauge | 28AWG | Cable OD | 5.5mm |
| Jacket Material | PVC | Current | 3A |
| Operation Temperature | -25°C ~+ 80°C | Max Length | 5m |
Features
100% electronically tested for functionality
Overall foil and braid shielded provides EMI/RFI protection
Life time: bending cycles 5 millions ~ 10 millions
Support WINDOWS2003 / 2007 / XP / Vista / WIN7 / WIN8, support plug and play, support hot plug;
RoHS and REACH compliant
Customized Connection Type:
Type A male Straight to Micro B Straight
Type A male Straight to Micro B Up Angle
Type A male Straight to Micro B Down Angle
Type A male Straight to Micro B Right Angle
Type A male Straight to Micro B Left Angle
Type A male Up Angle to Micro B Straight
Type A male Up Angle to Micro B Up Angle
Type A male Up Angle to Micro B Down Angle
Type A male Up Angle to Micro B Right Angle
Type A male Up Angle to Micro B Left Angle
Type A male Down Angle to Micro B Straight
Type A male Down Angle to Micro B Up Angle
Type A male Down Angle to Micro B Down Angle
Type A male Down Angle to Micro B Right Angle
Type A male Down Angle to Micro B Left Angle
Type A male Right Angle to Micro B Straight
Type A male Right Angle to Micro B Up Angle
Type A male Right Angle to Micro B Down Angle
Type A male Right Angle to Micro B Right Angle
Type A male Right Angle to Micro B Left Angle
Type A male Left Angle to Micro B Straight
Type A male Left Angle to Micro B Up Angle
Type A male Left Angle to Micro B Down Angle
Type A male Left Angle to Micro B Right Angle
Type A male Left Angle to Micro B Left Angle
Application
Industrial CCD scaner
Industrial vision inspection system
Machine vision connection
Digital Signal and TV wall
Smart Digital Video Surveillance System
Zero Client Connectivity
Remote Storage
