3m Camera Link Cable Assemblies 85MHZ Beige Color Compliant AIA Standard

Shenzhen Himatch Technology Co., Ltd.
Contact Now

3m Camera Link Cable Assemblies 85MHZ Beige Color Compliant AIA Standard

  • 1
  • 2

Brand Name : Himatch or OEM

Model Number : X-CL-P-SS-0300G

Certification : UL/ CSA , ISO

Place of Origin : China

MOQ : 30pcs

Price : USD20-USD80 depend on the overall length of cable

Payment Terms : T/T

Delivery Time : 2-3 Weeks

Packaging Details : PE bag, Box, Carton

Supply Ability : 20000pcs/Month

name : Shrunk Delta Ribbon cable

Cable color : Beige or black

Bending : 1,000,000 cycles

Length : variety length

Cores : 11P+2C

Cable OD : 8.0

Conductor : High purity copper 99.99%

Interface : SDR connector

Entry : Straight

Packing : PE bag, paper box

Contact Now

3M Camera Link Cables Assemblies 85MHZ , Compliant AIA Standard

Himatch’s camera link cable series are constructed of UL verified full shieding plenum rated 11pair+2 cores robotic cable with high quality 3M® SDR 26pin connector, or Honda® SDR(Shrunk Delta Ribbon) 26pin connector, with robust molding with thumbscrew, They offer outstanding quality, durability, and high performance for industrial CCD camera with SDR or MDR port.

Specification:

Brand Himatch Model No. See Code Conductor TC
Cores 11P+2C Guage: 28AWG Insulation FEP/PE/PVC
Jacket Lead Free PVC Cable OD 8.0 Color Black/Beige
Cable Round For ACC Certification UL
Voltage 80V Bending 10-20 Million OEM Yes

Features

Special insulation and shielding.
Twist Pair symmetry.
Offset uniformity.
Cable tension uniformity

Low noise and good performance in skew

Shielded pairs provide superior signal integrity

Overall foil and braid shielded provides EMI/RFI protection

Support for high speed industrial camera image transmission.

RoHS and REACH compliant

3m Camera Link Cable Assemblies 85MHZ Beige Color Compliant AIA Standard

Application

it is regarded as the digital interface which can easily process the maximum capacity digital image, now it is the preferred digital interface of machine vision,frame grabber,Industrial CCD camera,Industrial vision, inspection system, Machine vision,Vision inspection equipment.


Product Tags:

camera link mdr



camera link sdr


China 3m Camera Link Cable Assemblies 85MHZ Beige Color Compliant AIA Standard wholesale

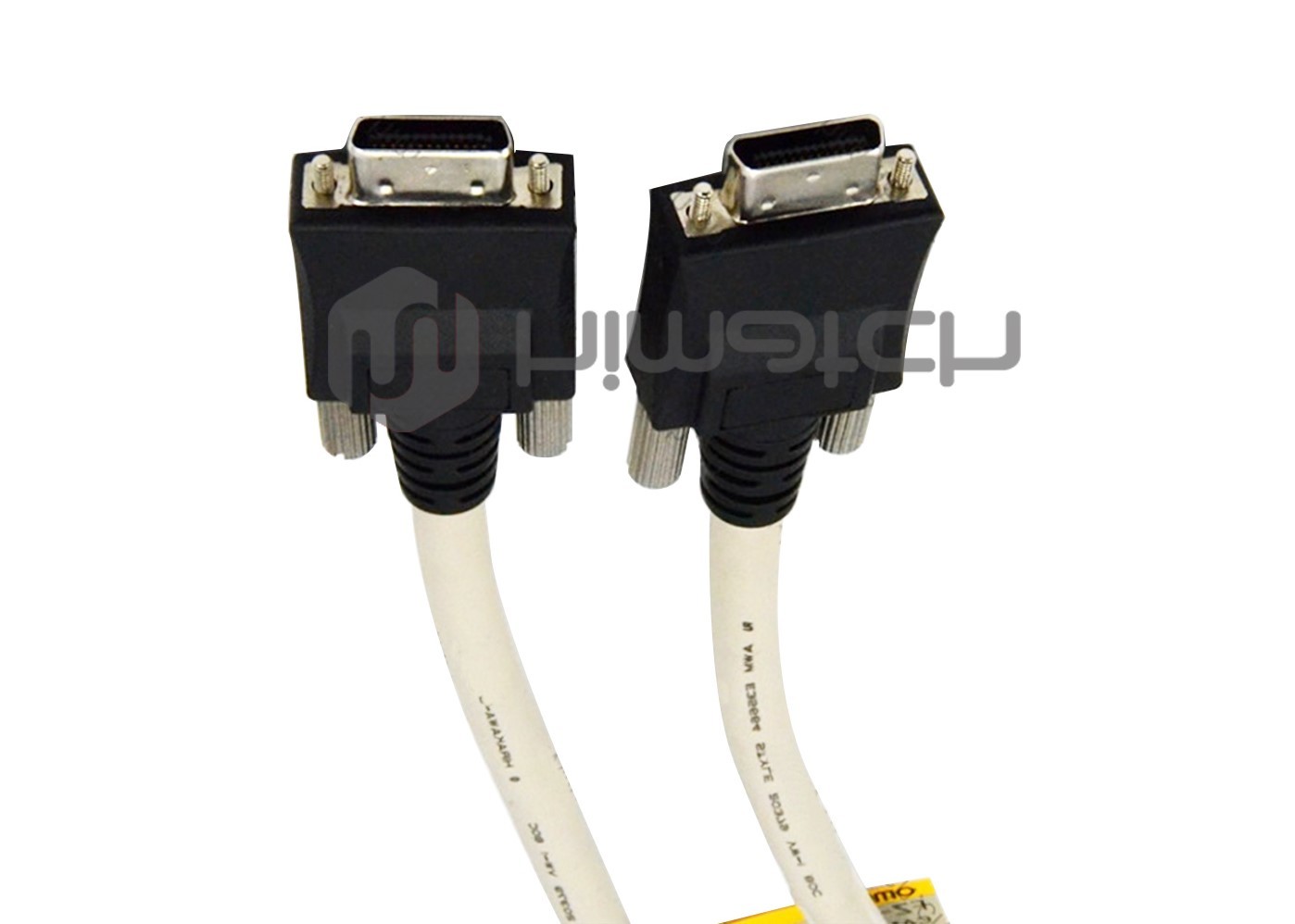

3m Camera Link Cable Assemblies 85MHZ Beige Color Compliant AIA Standard Images
